Loft ladder REI 45 comfort - Made to measure

Fire-resistant for 45 minutes, comfortable and safe

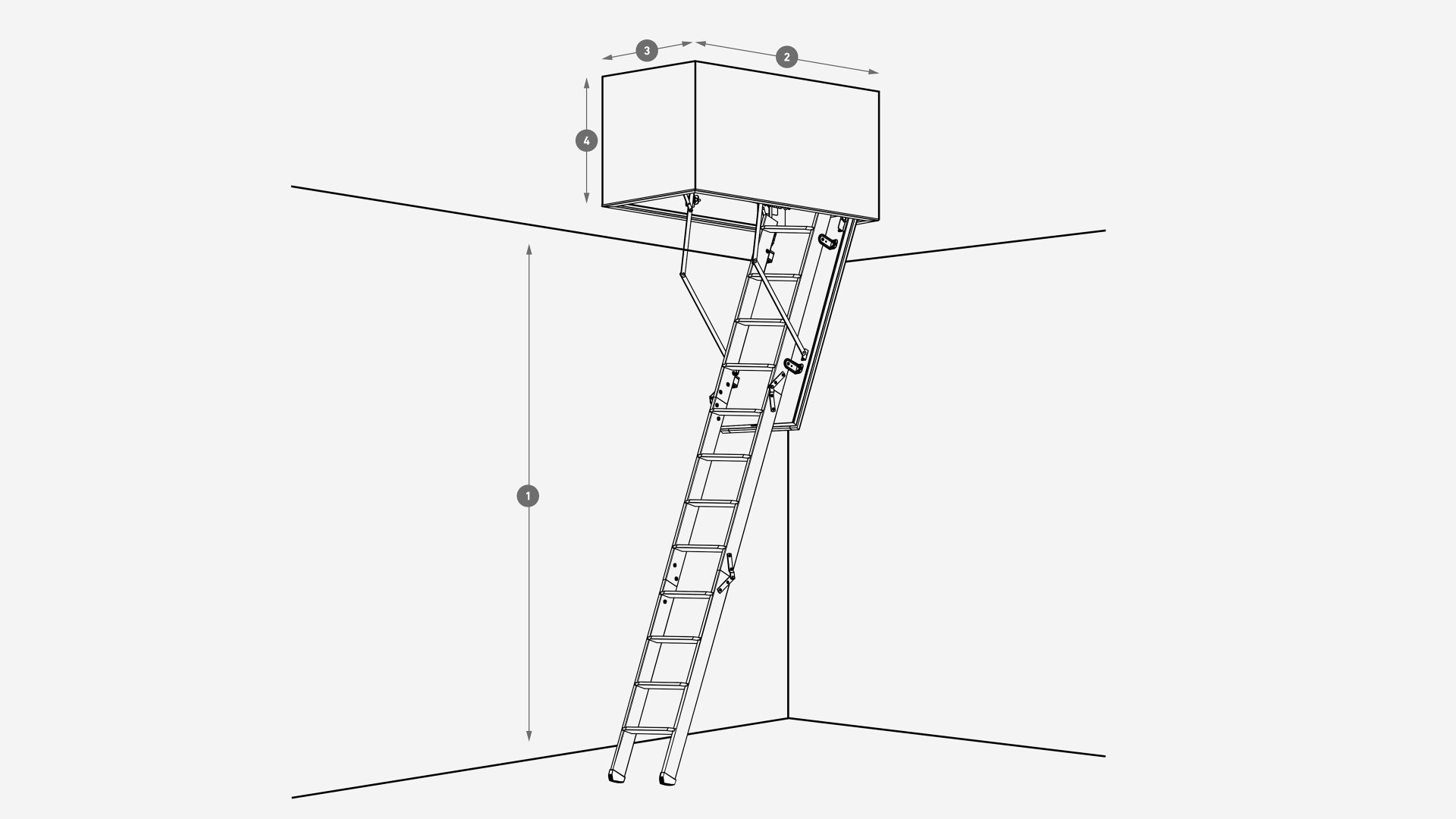

Just enter the ceiling height of your room where the loft ladder will be installed. then your ideal ceiling opening dimensions. The casing height can be 80 cm high and a maximum ceiling height 290.6 cm.
Read more

Configure your product

Necessary add-ons

Optional add-ons 3 products

Product description

DOLLE REI 45 Comfort is our made to measure is a fire-resistant loft ladder complete with an anthracite grey steel ladder. REI is a new European classification. The European fire requirements are described based on the ceiling staircase R (resistance) - Resistance under fire, E (integrity) - Ability to keep out flames and gases and I (insulation) - Ability to keep out heat. After the fire class, the period of time that the loft ladder can withstand fire is indicated, DOLLE REI 45 means that the loft ladder is fire-resistant for 45 minutes.

. The trapdoor is insulated with 50 mm Rockwool plate, which is made of non-combustible, moisture and water-repellent Rockwool stone wool and still has a good U-value: 0.96 W/m2*K. The trapdoor has an attractive finish as the hinges are concealed, making it easier to paint. The trapdoor is primed white complete with lock. The loft ladder can also be prepared for a cylinder lock, which can be purchased on this page as an extra. It is not possible to add extension links to Made-to-measure loft ladders

DOLLE REI 45 Comfort loft ladder comes with white-painted gratings that are cut to size and ready to install. The Fire-resistant loft ladder can be manufactured in any size hole size length from 120 to 160 cm. The width of the ceiling opening can be manufactured from 60 to 80 cm. However, the dimensions (L x W) of the ceiling casing cannot exceed 1.13 m2.


Casing height up to 80 cm.

It is possible to design the Made-to-measure loft ladder with a casing height of up to 80 cm. Casing heights over 36 cm are fitted with an extra tread in the casing. If the casing height is above 65 cm, 2 treads must be installed to comply with building regulations. The casing is white primed plywood.


The difference between ceiling opening and casing dimensions?

We use the term " ceiling opening ". The term refers to the size of the opening in the ceiling where the loft ladder will be placed.

The casing dimensions are the length and width of the casing of the loft ladder.

Our loft ladders are produced 2.5 cm smaller than the hole size you order, this ensures that there is a gap for the loft ladder to be installed.

If you have any questions, please feel free to contact our customer service.



Please note that this is a made-to-measure product and therefore cannot be returned or cancelled after purchase.

Technical data
Product number Please select a variant
EAN Please select a variant
Swing clearance Please select a variant
Horizontal clearance Please select a variant
U-value (W/m²* K) 0.9600
Attic ladder type Please select a variant
Usage Please select a variant
Sections Please select a variant
Ladder material Please select a variant
Trapdoor material Please select a variant
Trapdoor thickness 56 mm
Insulation 50 mm
Casing material Blockboard
Casing thickness 18 mm
Number of treads Please select a variant
Tread rise Please select a variant
Tread material Steel
Tread thickness 30 mm
Tread width Please select a variant
Tread depth 130 mm
String material Steel
String thickness 20 mm
String depth 40 mm
Maximum load 150 kg
Product weight Please select a variant
Tested U-value - tested as building component by testinstitute: IFT Rosenheim, Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood
