Loft ladder REI 60 - Made to measure

Fire-Resistant Loft Ladder for 60 Minutes

Enter the ceiling height and your opening dimensions and let our design tool guide you through your options. Casing height can be as high as 80 cm. Max. ceiling height: 328 cm.

Configure your product

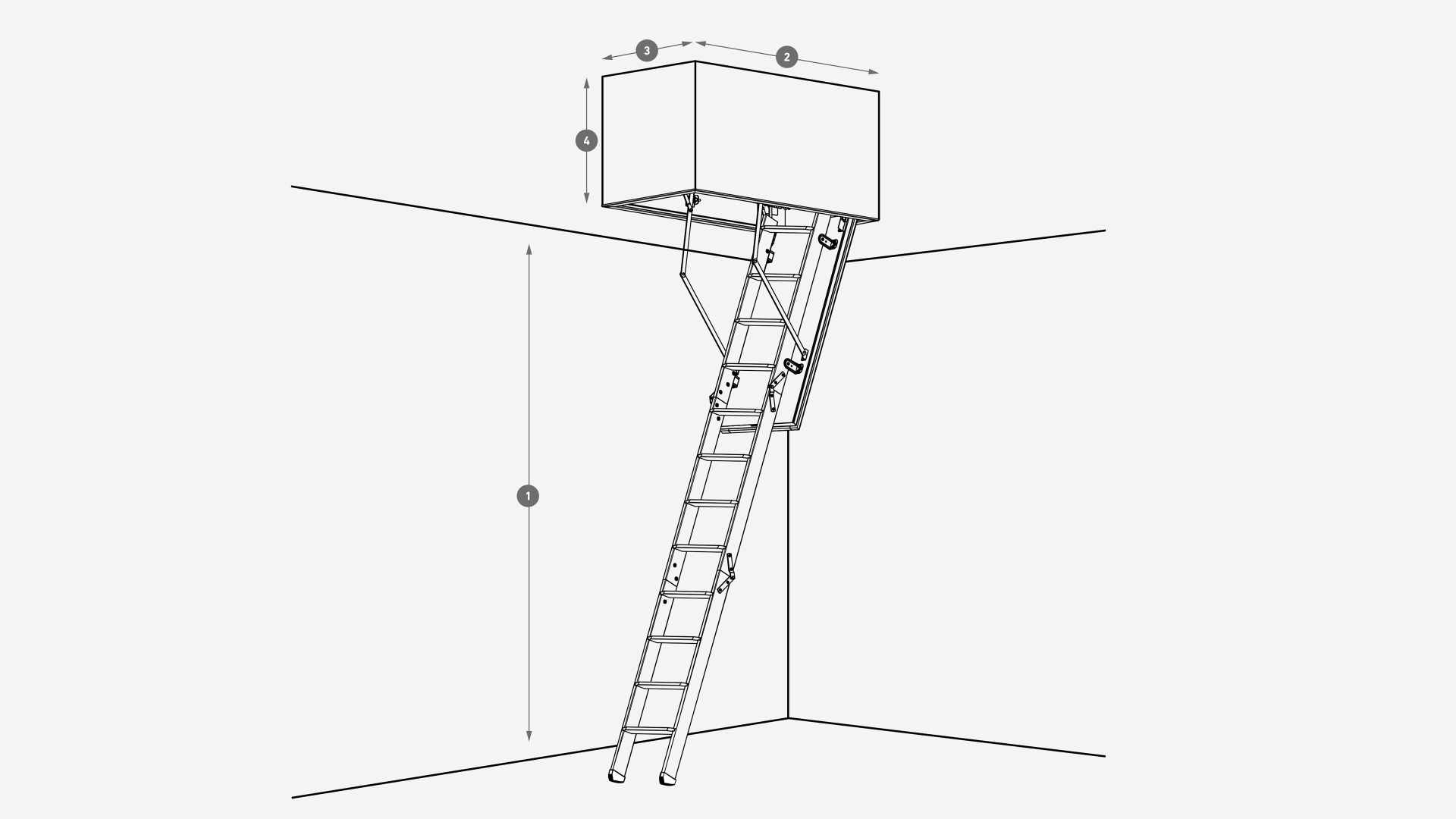

Floor-to-ceiling height

Opening length

Opening width

Floor to ceiling height (cm) Possible values: 218 - 328 cm

Opening length (cm) Possible values: 112 - 160 cm

Opening width (cm) Possible values: 50 - 80 cm

Casing height (cm) Possible values: 19 - 80 cm

Optional add-ons 4 products

Red handrail (opening size width ≥ 60 cm) | Special measure loft ladders

Telescopic handrail in steel | Made to measure

Lock housing

Lock housing kit incl. lock

Product description

The DOLLE REI 60 is a 60-minute fire-resistant loft ladder which is manufactured in accordance with EN 13501-2. The ladder, made of high-quality materials, is stable and easy to operate. Crafted from pine with non-slip beech treads, it can reach a ceiling height of up to 328 cm. The trapdoor on REI 60 is insulated with a 70 mm stone wool board, made of non-combustible, moisture- and water-resistant Rockwool stone wool. The 76 mm thick trapdoor effectively retains heat and is resistant to wear and scratches. REI 60 has a tested U-value of 0.94 W/m2*K.

Fire-Tested Loft Ladder with 60-Minute Fire Resistance

Building regulations increasingly demand fire resistance for structural components, and this includes loft ladders. Therefore, we test our fire-resistant loft ladders according to European regulations, complying with EN 13501-2. A fire-resistant loft ladder undergoes a fire test where it is installed in a fire chamber and exposed to a real fire situation. The REI 60 loft ladder is tested and certified by the Danish Institute of Fire and Security Technology (DBI).

Casing Height Up to 80 cm

It is possible to design the Made-to-measure loft ladder with a high casing of up to 80 cm. A casing height over 36 cm is fitted with an extra tread in the casing. If the casing height is over 65 cm, 2 treads must be installed to comply with building regulations. The casing is white-primed plywood. It is not possible to add extension links to custom-sized loft ladders.

REI 60 Can Be Prepared for a Lock

You have the option to purchase REI 60 with a cylinder lock. This provides the significant advantage of securing access to the loft space, making it suitable for installation in garages and carports.

The difference between ceiling opening and casing dimensions?

We use the term " ceiling opening ". The term refers to the size of the opening in the ceiling where the loft ladder will be placed.

The casing dimensions are the length and width of the casing of the loft ladder.

Our loft ladders are produced 2.5 cm smaller than the hole size you order, this ensures that there is a gap for the loft ladder to be installed.

If you have any questions, please feel free to contact our customer service.

Please note that this is a made-to-measure product and therefore cannot be returned or cancelled after purchase.

Technical data

Product number	Please select a variant
EAN	Please select a variant
Swing clearance	Please select a variant
Horizontal clearance	Please select a variant
U-value (W/m²* K)	0.9400
Attic ladder type	Please select a variant
Usage	Please select a variant
Sections	Please select a variant
Ladder material	Please select a variant
Trapdoor material	Sandwich construction
Trapdoor thickness	76 mm
Insulation	60 mm
Casing material	Laminated pine, white finish
Casing thickness	18 mm
Number of treads	Please select a variant
Tread rise	Please select a variant
Tread material	Solid beech
Tread thickness	17.5 mm
Tread width	Please select a variant
Tread depth	83 mm
String material	Pine
String thickness	21 mm
String depth	83 mm
Maximum load	150 kg
Product weight	Please select a variant
Tested	Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood, Manufactured according to EN 14975
