Loft ladder REI 45 - Made to measure
Fire-resistant for 45 minutes
Product description
DOLLE REI 45 is a fire-resistant loft ladder with fire resistance of 45 minutes according to European standard 13501-2. The trapdoor is insulated with 50 mm rockwool non-combustible water-repellent stone wool. The loft ladder has an attractive finish where the hinges are concealed, and the trapdoor is a white HDF board complete with a locking mechanism.
The DOLLE REI 45 loft ladder comes with white painted architraves that are cut to size and ready to install. The Made-to-Measure loft ladder is made in of quality raw materials, other feature includes, non-slip plastic feet and the main ladder is made of pine wood with 12-14 solid non-slip beech treads. The casing has a rebated bottom edge and sealing strips to prevent heat loss. Supplied with white-painted mouldings cut to size and ready to install. The U-value is 0.96 W/m2*K.

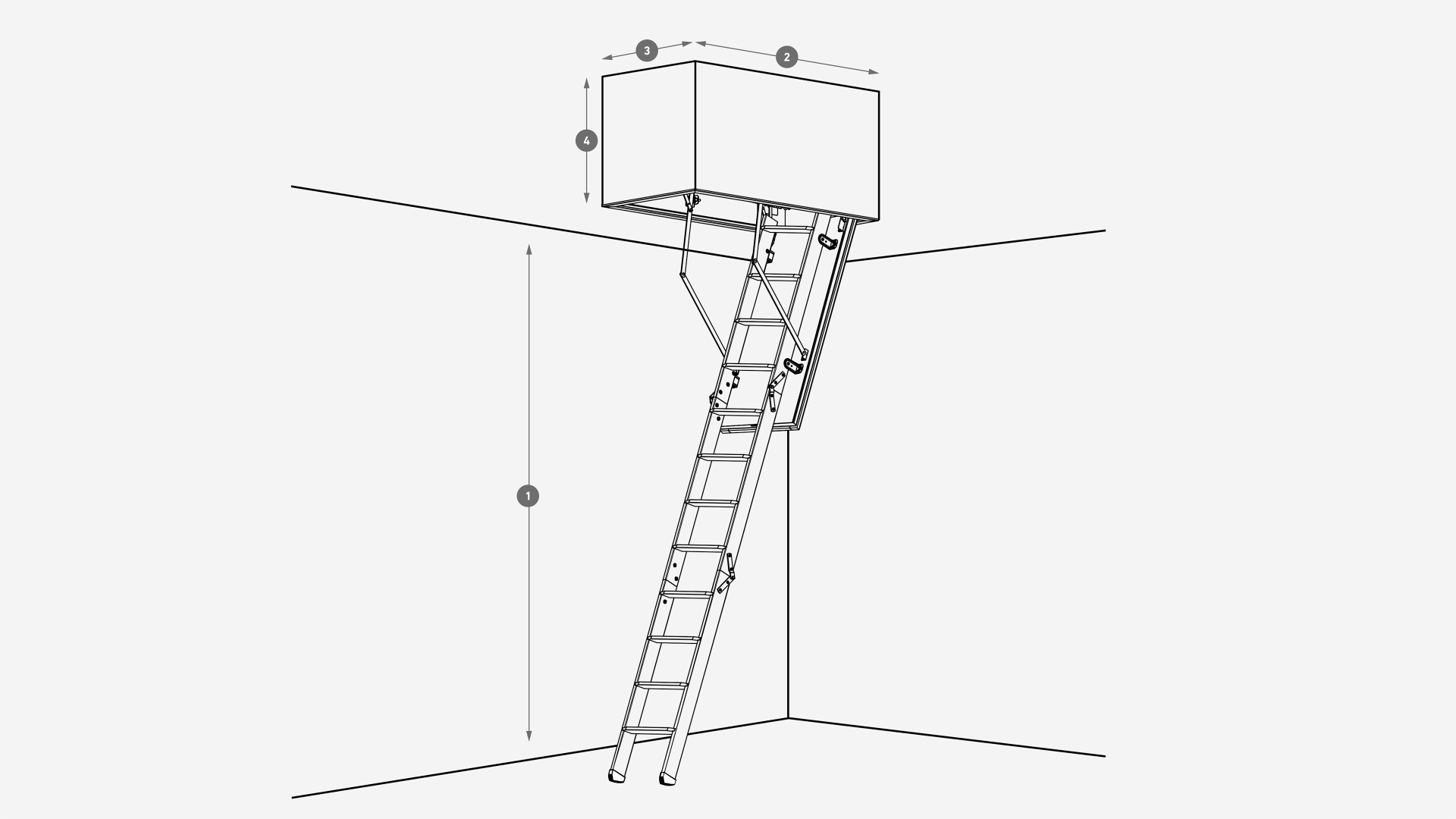

The Fire-resistant loft ladder can be manufactured in all sizes with a length of 112 cm (depending on the desired ceiling height) to 160 cm. The opening width can be manufactured from 50 to 80 cm. However, the dimensions (L x W) of the ceiling strip cannot exceed 1.13 m2. It is not possible to add extensions to Made-to-measure loft ladders.
Casing height up to 80 cm.
It is possible to design the Made-to-measure loft ladder with a casing height of up to 80 cm. Casing heights over 36 cm are fitted with an extra tread in the casing. If the casing height is above 65 cm, 2 treads must be installed to comply with building regulations. The casing is white primed plywood.
Can be prepared for cylinder lock - buy lock case further down the page.
The difference between ceiling opening and casing dimensions?
We use the term " ceiling opening ". The term refers to the size of the opening in the ceiling where the loft ladder will be placed. |
Please note that this is a made-to-measure product and therefore cannot be returned or cancelled after purchase.
Technical data
Product number | Please select a variant |
---|---|
EAN | Please select a variant |
Swing clearance | Please select a variant |
Horizontal clearance | Please select a variant |
U-value (W/m²* K) | 0.9600 |
Attic ladder type | Please select a variant |
Usage | Please select a variant |
Sections | Please select a variant |
Ladder material | Please select a variant |
Trapdoor material | Sandwich construction |
Trapdoor thickness | 56 mm |
Insulation | 50 mm |
Casing material | Blockboard |
Casing thickness | 18 mm |
Number of treads | Please select a variant |
Tread rise | Please select a variant |
Tread material | Solid beech |
Tread thickness | 17.5 mm |
Tread width | Please select a variant |
Tread depth | 83 mm |
String material | Pine |
String thickness | 21 mm |
String depth | 83 mm |
Maximum load | 150 kg |
Product weight | Please select a variant |
Tested | U-value - tested as building component by testinstitute: IFT Rosenheim, Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood |
