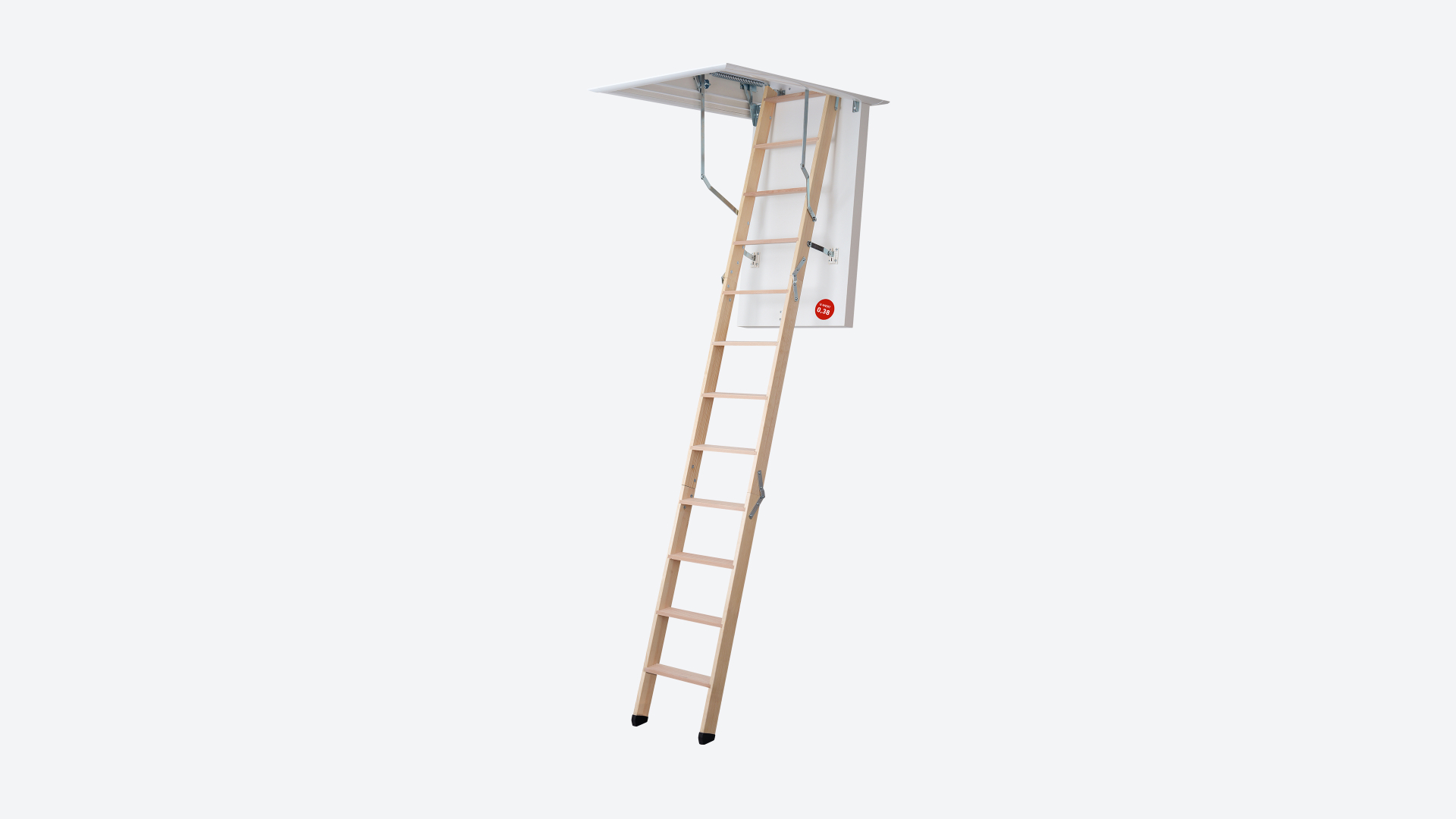

clickFIX thermo® loft ladder with 70 mm thick polyurethane insulation in the compact 76 mm trapdoor. Polyurethane has the best insulation value and quality on the market. Thus, the DOLLE loft ladder reaches the highest insulation value on the market. The U-value is record low at 0.38 W/m2 *K. At DOLLE we are testing our insulation capability and we are not just calculating it. Our loft ladders are tested on the entire trapdoor as a complete building component.
Our new DOLLE clickFIX®️ thermo comfort loft ladder has two installation solutions where you can install into the plasterboard so its flush with ceiling. Thanks to the newly developed loft ladder profile we have a durable fully integrated ceiling solution where the plasterboard is placed directly against the loft ladder profile and only the trapdoor is visible at the entrance to the loft space. In the second option is you can install the traditional way using our architraves. Either way you can visually conceal the installation joint for a seamless finish and both options are included with the loft ladder.
The 76-mm thick trapdoor of the DOLLE clickFIX® keeps heat efficiently in the living area and is also CPL-coated. With this particularly robust laminate, the trapdoor is significantly more abrasion, scratch and impact-resistant than other surfaces. Part of the secret lies in the top layer, which consists of melamine resin. It withstands light scratches as well as normal dirt, it's solvent and heat resistant, smudge-proof and easy to clean. The trapdoor maintains it bright white colour for a long time as CPL surfaces are colour and lightfast. The trapdoor fits discreetly into the ceiling it also remains in pristine condition.
The patented articulated lever is another innovation. It allows installation without tools. The lever is merely plugged onto the bolt plate, turned around and cannot then solve again. The ladder section can be adjusted by up to 4 cm in height with the adjustment screws on the stud plate. For example, a ladder section that is not shortened in height can be levelled comfortably and simply. TIP: The lever should be oiled once a year for long-term function.
With a height of 24 cm, the casing offers better possibilities for installation in more insulated ceilings. For example, clickFIX® thermo can also be installed in suspended ceilings.
For greater comfort and safety, deep steps have been incorporated in the clickFIX® thermo. With a step depth of 8.3 cm, they offer an increased surface area.
The DOLLE clickFIX® thermo can also be easily installed by one individual thanks to its low dead weight and patented assembly technology with click modules: Align the casing, screw it on, hook in the hatch cover and ladder section and adjust to the room height, that's it.
The circumferential double seals and additional corner seals significantly reduce the risk of condensation forming and effectively protect against possible mold growth. The supplied Twin-Active foil as ceiling connection tape together with the on-site insulation of the building seam ensures an airtight, thermally insulated connection of the loft ladder to the ceiling construction.
Vapour barrier with TwinActive-foil seals your product for optimal heat-insulation. Easy to attach.
Optional accessories:
Plastic feet, architraves and handrails are not included as standard.
|
1
|
Please select a variant |
|---|---|
|
2
|
Please select a variant |
|
3
|
Please select a variant |
|
4
|
Please select a variant |
| Product number | Please select a variant |
| Finish | White |
| U-value (W/m²* K) | 0.3800 |
| Ladder material | Wood |
| Casing material | Laminated pine, white |
| Trapdoor material | Sandwich construction |
| Casing (height) | Please select a variant |
| Maximum floor-to-ceiling height | Please select a variant |
| Maximum load | 150 kg |
| Swing clearance | Please select a variant |
| Tested | U-value - tested as building component by testinstitute: IFT Rosenheim, Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood, Manufactured according to EN 14975 |
| Attic ladder type | Please select a variant |
| Usage | Manual |
| Tread rise | 235 mm |
| Tread thickness | 17.5 mm |
| Tread width | Please select a variant |
| Tread depth | 83 mm |
| Trapdoor thickness | 76 mm |
| Going | 358 mm |
| Number of risers | Please select a variant |
| String depth | 84 mm |
| String thickness | 21 mm |
| String material | Pine |
| Fire resistance | Please select a variant |
| Fire resistance class | None |
