Fire-resistant loft ladder REI 60 vario

Go high up - Fireproof high ceiling loft ladder

Fire-resistant loft ladder of 60 minutes and complies with EN 13501-2
Narrow pull down concertina ladder
Low U-value of 0.94 W / m² · K
Comfortable concertina ladder can easily be extended and pushed together
Fire-resistant loft ladder DOLLE REI 60 vario (concertina ladder) is developed for maximum of flexibility. At the same time the loft ladders is fire-resistance of 60 minutes and complies with EN 13501-2. Low U-value of 0.94 W / m² K.
Read more

Configure your product

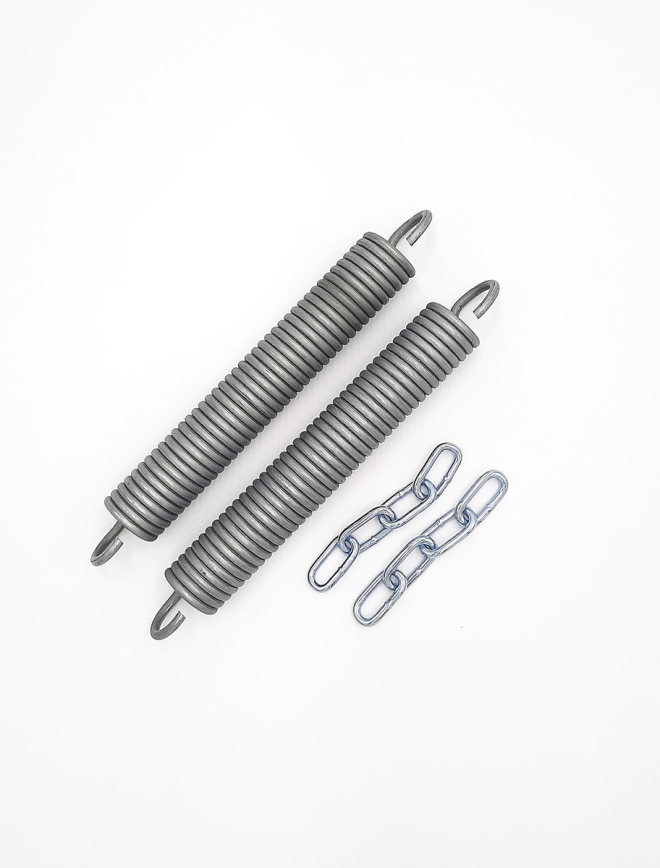

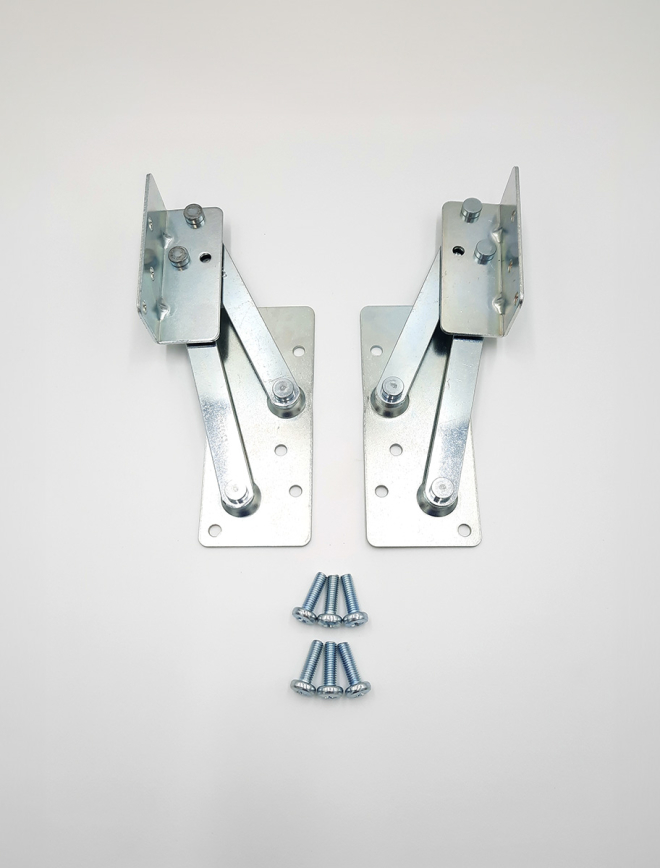

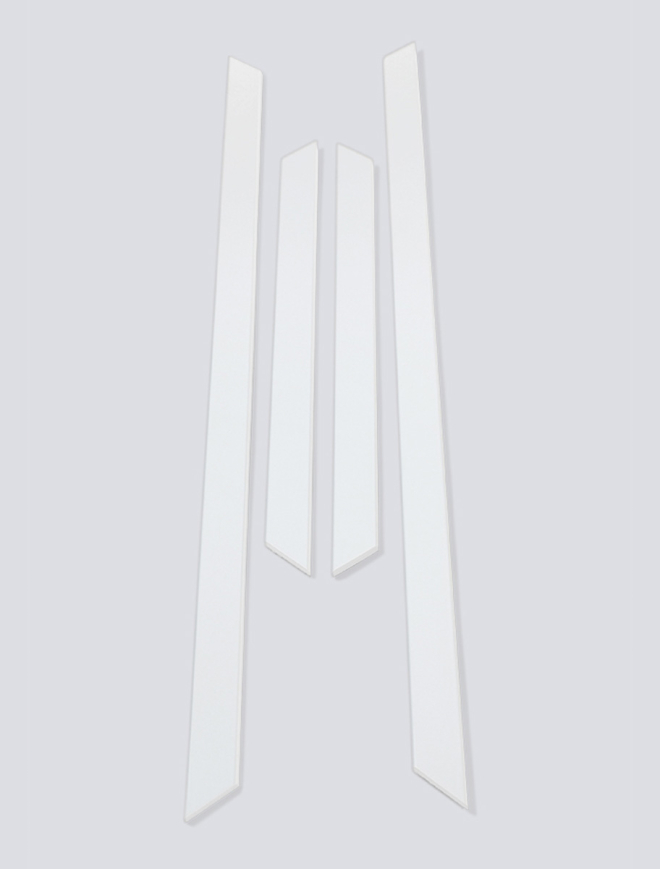

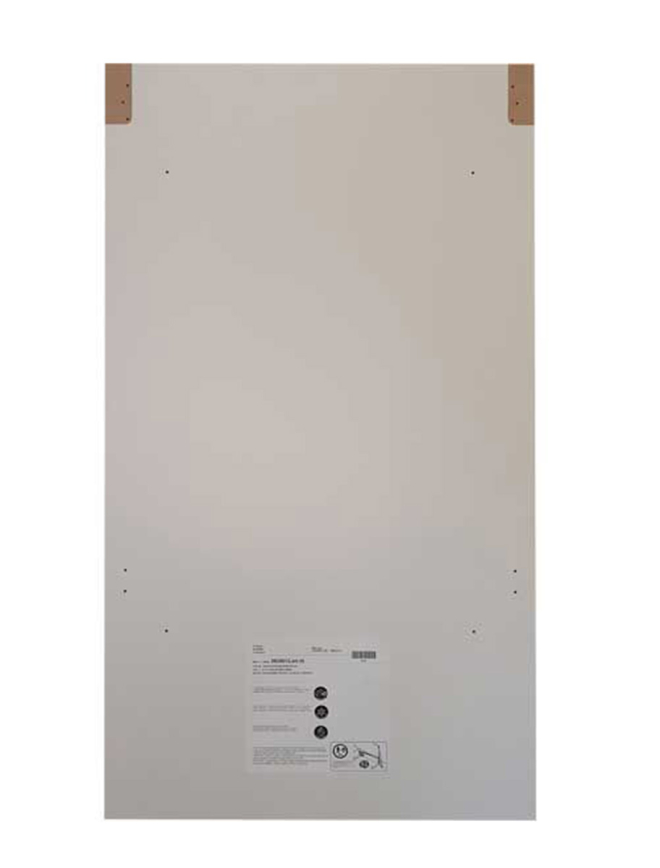

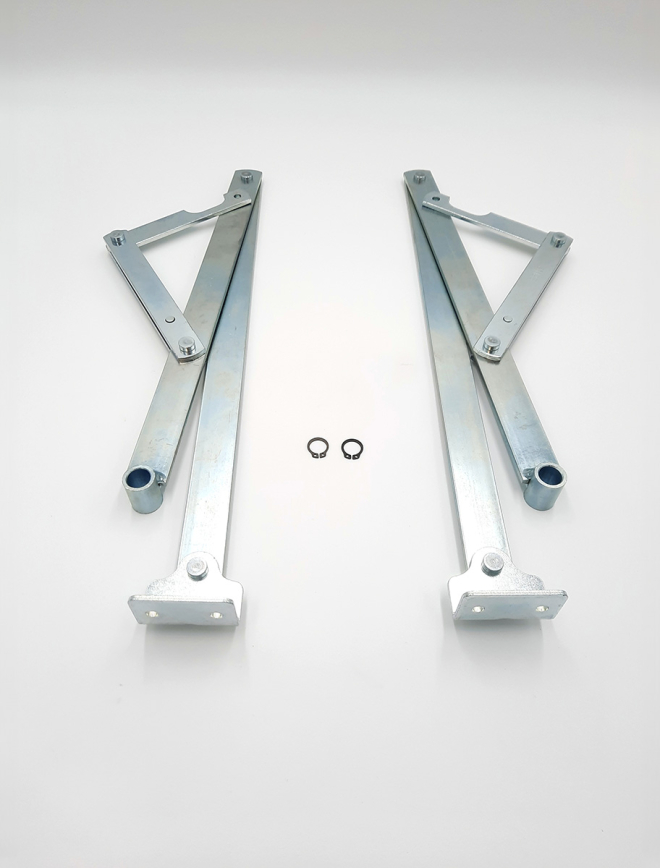

Accessories 2 products

Products with the pencil icon require your customization after being added them to the cart.
Product description

Pull down aluminium concertina loft ladder

The DOLLE REI 60 vario has a concertina ladder made of aluminum profiles that can be ordered with 9, 10, 11, 12, 13 or 14 treads. With 14 treads, it reaches a maximum ceiling height of 422 cm. If opening size measurements does not fit your needs - go to made to measure loft ladder REI 60. Here the loft ladder can be made to your measurements with 10 to 14 treads. The 11 cm deep and anti-slip treads offer safe and comfortable access. The concertina ladder can easily be extended and pushed together.


CPL COATING LOFT LADDER FOR LONG-LASTING PROTECTION

The 76 mm thick trapdoor of the DOLLE REI 60 vario is insulated with 70 mm rockwool plate, which is made of non-combustible, moisture and water-repellent Rockwool stone wool. This insulation not only withstand fire but also hold onto heat in winter and reduce heat efficiently in the living area during summer. The trapdoor is coated with a robust laminate CPL which is significantly more abrasion, scratch and impact-resistant than other surfaces. The secret lies in the top layer, which consists of melamine resin. It withstands light scratches as well as normal dirt, it's solvent and heat resistant, smudge-proof and easy to clean. The trapdoor fits discreetly into the ceiling and remains in pristine condition. The white CPL surface is UV-resistant and therefore maintains the bright white colour for a long time.

DOLLE REI 60 vario has a component-tested U-value of 0.94 W / m² · K, tested by Technological Institute.

Add the teleskopic handrail Vario for extra security and comfort.



Fire-resistant loft ladder from DOLLE REI 60 - new European fire class EN 13501-2

The new European fire requirements are described from the loft ladders:

R (resistance) carrying capacity during fire.

E (integrity) ability to keep flames and gases out.

I (insulation) provides resistance to heat flow.

After the classification, the time period for which the loft ladder can withstand fire is indicated by the DOLLE REI 60 so that the fire-resistant loft ladders are fireproof for 60 minutes.

All loft ladders from DOLLE are tested in accordance with EN 14975.

Technical data
1
Opening size (length)
Please select a variant
2
Opening size (width)
Please select a variant
Floor-to-ceiling height
Please select a variant
R
Total going length
Please select a variant
Product number Please select a variant
EAN Please select a variant
Opening size (length) Please select a variant
Opening size (width) Please select a variant
Floor-to-ceiling height Please select a variant
Total going length Please select a variant
Swing clearance Please select a variant
Horizontal clearance Please select a variant
U-value (W/m²* K) 0.9400
Attic ladder type Concertina ladder
Usage Manual
Sections Please select a variant
Ladder material Aluminum
Trapdoor material Sandwich construction
Trapdoor thickness 76 mm
Insulation 70 mm
Casing material Laminated pine
Casing thickness 18 mm
Outside casing (length) Please select a variant
Outside casing (width) Please select a variant
Casing (height) Please select a variant
Number of treads Please select a variant
Tread rise Please select a variant
Tread material Aluminium, U-profile (2 mm)
Tread thickness 2 mm
Tread width 32 mm
Tread depth 11 mm
String material Aluminum
String thickness Please select a variant
String depth Please select a variant
Maximum load 150 kg
Product weight Please select a variant
Tested U-value - tested as building component by testinstitute: Technological Institute, Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood
